The Scorpion TGX

caving and mining lamp

This is a new concept in underground lighting and as such is rather unique in that it has laminated glass. This is a feature that to the best of our knowledge no other lamp has.

Laminated Glass


The Scorpion TGX (Tough - Extreme use)





Available soon

Currently being tested out.

  • GoPro mounted with full GoPro compatibility

  • IP 68 5 metre immersion, extended control buttons, 8 Newtons pressure. Resistant against mud, sticking,  and accidental activation

  • Max output 1800 lumens.

  • Simple push button operation.

  • Three easy programs.
    Quick touch #1 On - walk mode, middle, and max.
    Longer touch #2, On - the flashes for those who like them.
    10 sec press #3, On - 10 different brightness modes starting with a low mode up to maximum.

  • GoPro helmet bracket included.

  • Free GoPro accessory pack with lamp. Cycle and tripod mount, extensions etc.

  • Lockdown by separately controlled CMOS safety lock, draws approx 16 uA (16 millionths) amp on standby. Battery depletion measured in years!

  • Permanent cell connection, no plug to allow water to pass up inside the cable.

  • 5mm Laminated Glass

  • Cell charging by simple jackplug, cover plug 10 BAR pressure rated.

  • Tight spot beam and wide angle beam, power divided equally.

  • Battery level indicator acts as pilot light. Green, amber, red, and flashing red.
    Additional blue strip ‘nightrider’ battery indicator on power up

  • 28 watt hour aluminium cased power bank. Genuine Sanyo cells. (3500 mAh @ 7.4V nominal)

  • Standard mode (200 lumens) tested burn time, 12 hours full power then diminishing into a 'slow death' up to 20 hours.

  • Weight 195 grams

LATEST Nov 2018



I have improved the laminated glass which is now 5mm and am redesigning the front with new faceplates to accommodate this. The diameter is reduced to 42mm glass in a 52mm diameter surround.

Test results are startling with hefty blows from a small ball hammer leaving the glass unmarked. I actually tried to break the thing to see the breakage pattern but had to give up.



I manufacture these myself and had initial problems as excess heat causes decomposition of the thermoplastc interlayer, I now have the process perfected.



The lamp will to the best of my knowledge be unique in having this type of glass. All the other lamps with the usual Scurion type rimless glass are polycarbonate.



Pic below, note the 3 layers

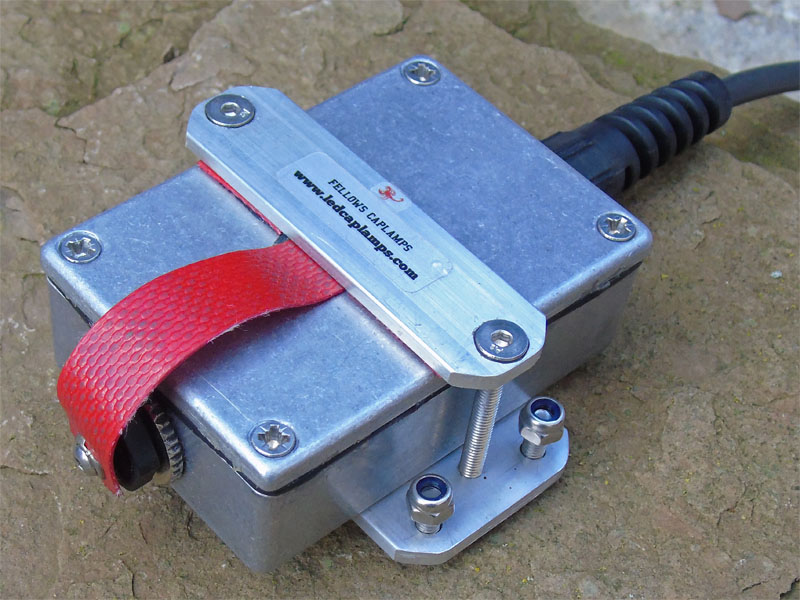

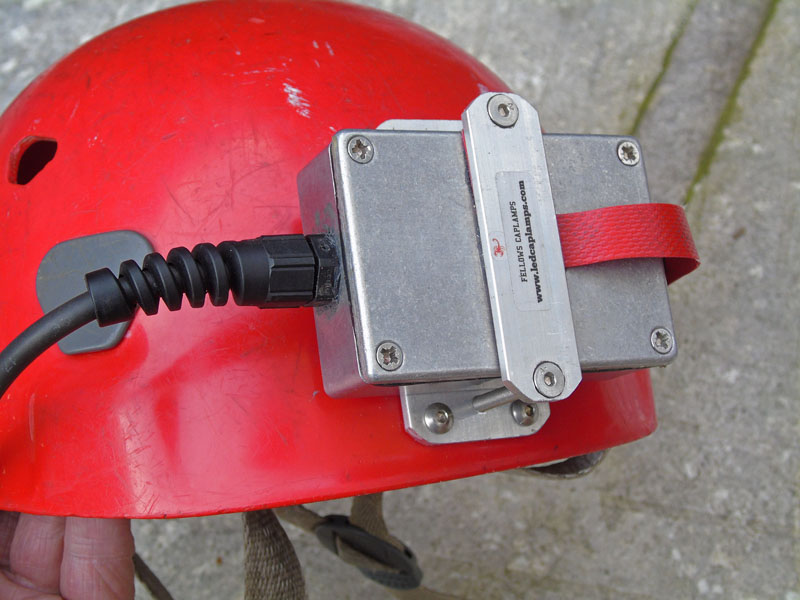

I have also redesigned the battery box which will have an aluminium attachment plate for direct mounting on the back of a helmet rather than the 4mm shockcord normally used.



Going to be one tough SOB



I can hold the price at £195 regardless of the improvements.

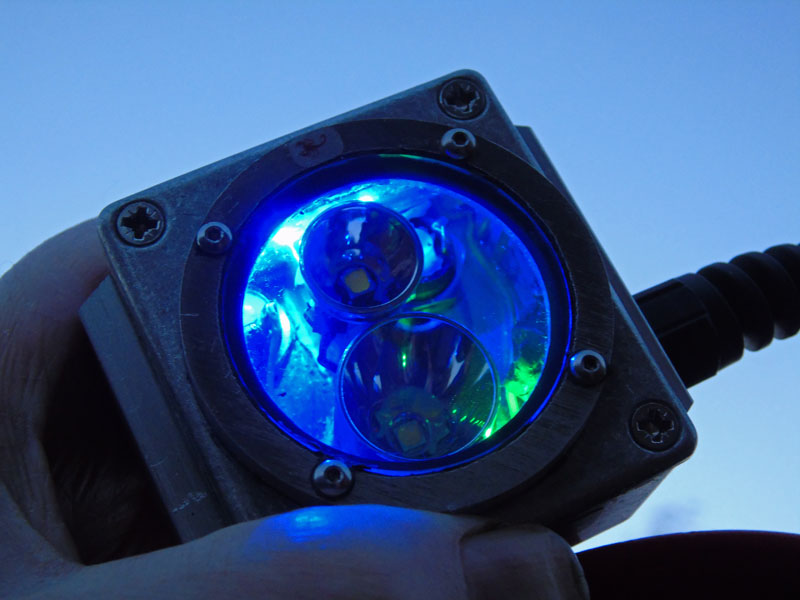

Below, the 4 blue LED battery indicator and green "All well"

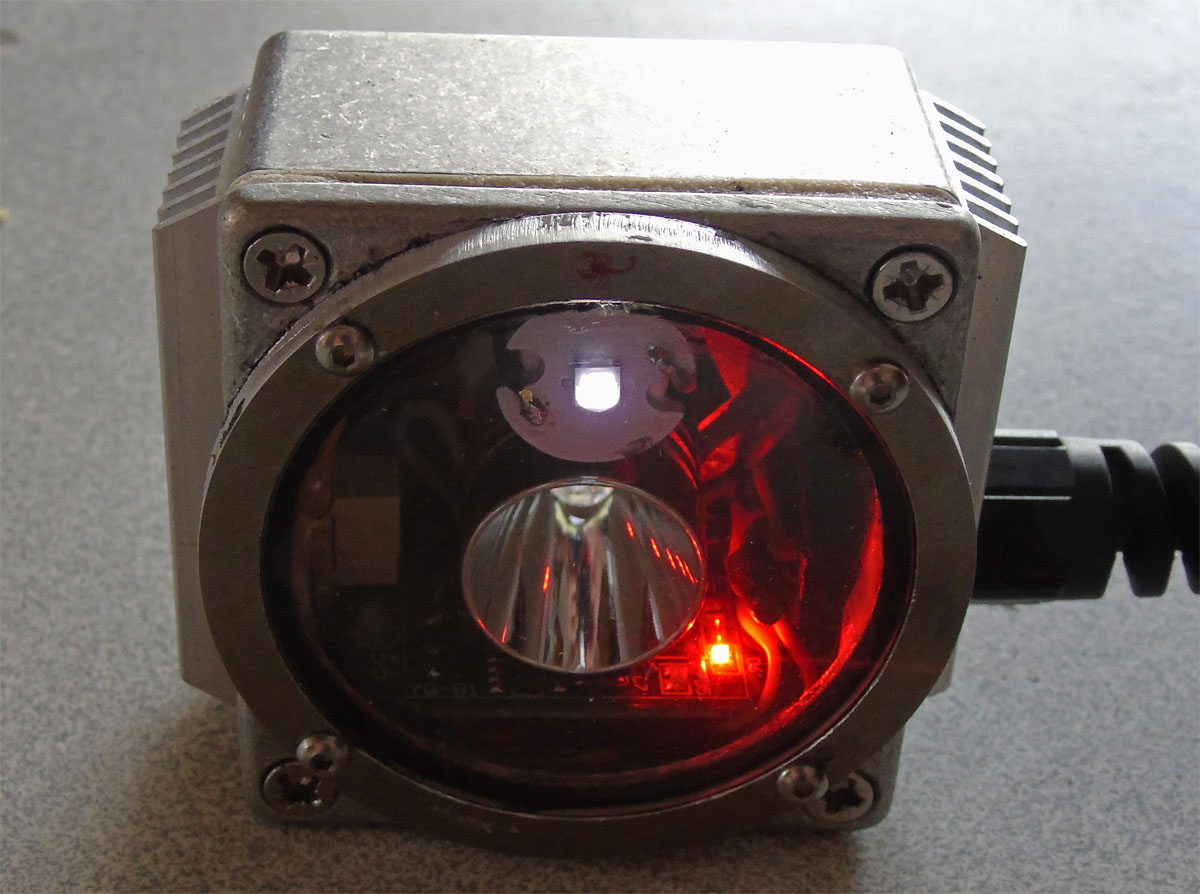

Lamp at 20 hours on Standard Mode.

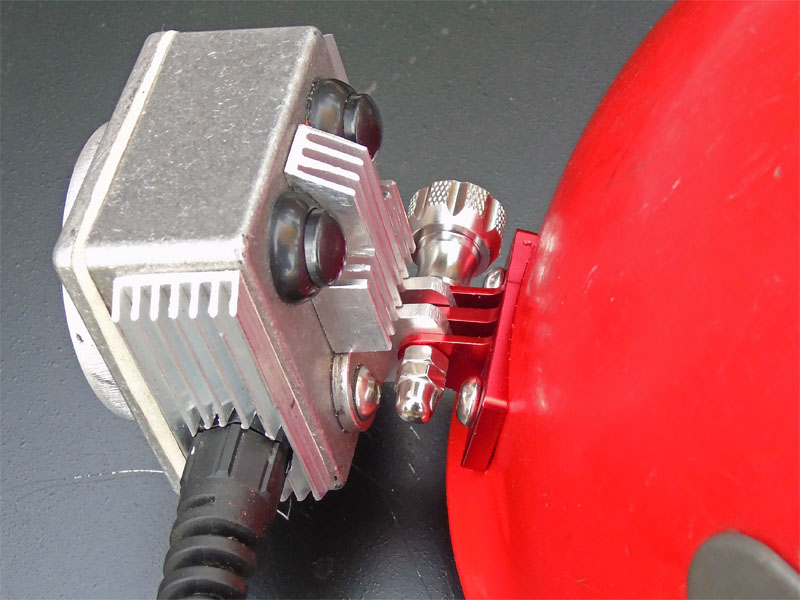

Nice helmet bracket!
